Space launch firm SpaceX is preparing to boost a Northrop Grumman spacecraft, code named Zuma, into low earth orbit from NASA’s Kennedy Space Center in Florida. But what the payload actually is, what it’s supposed to do and for how long, and what U.S. government agency or agencies are involved in the project all remain a mystery.
SpaceX originally scheduled the Zuma launch aboard one of its partially reusable Falcon 9 rockets for Nov. 15, 2017, but delayed the mission a day for unspecified reasons. According to its website, the California-headquartered firm says there are two additional back-up launch windows on Nov. 17 and Nov. 18, 2017.
“Both Falcon 9 and the payload remain healthy,” a SpaceX spokesperson told Space.com. “Teams will use the extra day to conduct some additional mission assurance work in advance of launch.”
The launch itself seems entirely routine. After blasting off from Launch Complex 39A at the Kennedy Space Center and putting the craft into orbit, the reusable Falcon 9 booster will attempt a landing at SpaceX’s Landing Zone 1 at the U.S. Air Force’s Cape Canaveral Air Force Station, also in Florida. The company has been steadily increasing the number of its launches since the rocket’s first flight in 2010.
But there is virtually no information about the payload itself. The entire mission remained out of the public eye until NASASpaceflight.com first noticed that SpaceX had filed documents with the Federal Communications Commission (FCC) to get a “special temporary authority” for radio communications associated with the launch, which the request described only as “Mission 1390.”
Follow-up reports from numerous outlets uncovered the existence of Northrop Grumman’s Zuma spacecraft and that the company was on contract to an unspecified U.S. government agency. The Virginia-headquartered defense contractor had previously made a deal with SpaceX for space launch services in 2015, but did not publicly schedule any associated missions. With all the formalities involved, and how hard it would be to keep that information secret, it seems as if this latest launch has been running on a truncated timetable.
So far, though, no U.S. government entity has officially claimed ownership of the payload. The National Reconnaissance Office (NRO), which manages America’s spy satellites, told Aviation Week that it had no connection to this particular mission.
NRO routinely announces its launches, even if it generally declines to provide any specific details about the payloads. On May 1, 2017, another one of SpaceX’s Falcon 9s lofted the classified NROL-76 spy satellite into orbit. In September 2017, the firm launched the U.S. Air Force’s shadowy X-37B space plane on its latest mission, known as Orbital Test Vehicle 5 (OTV-5).
“The Zuma payload is a restricted payload,” Lon Rains, the communications director for Northrop Grumman’s space systems division, told Space.com in a statement. “The event represents a cost-effective approach to space access for government missions. As a company, Northrop Grumman realizes that this is a monumental responsibility and has taken great care to ensure the most affordable and lowest risk scenario for Zuma.”

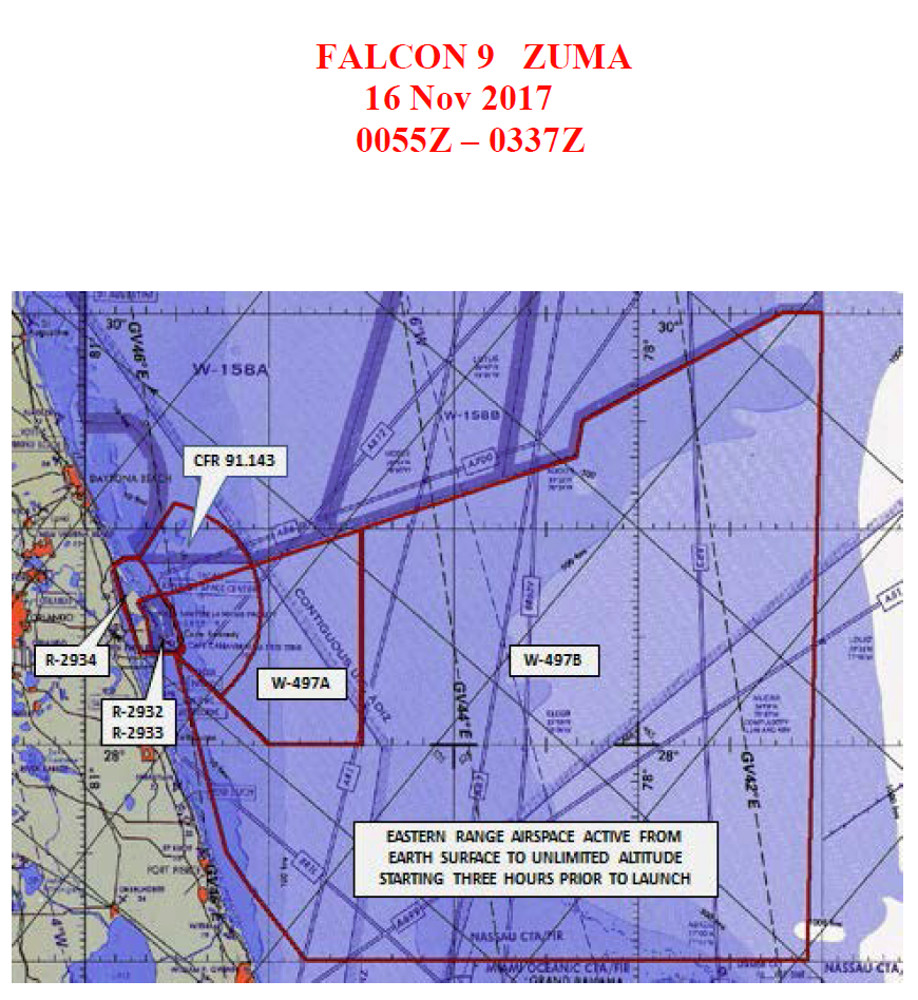

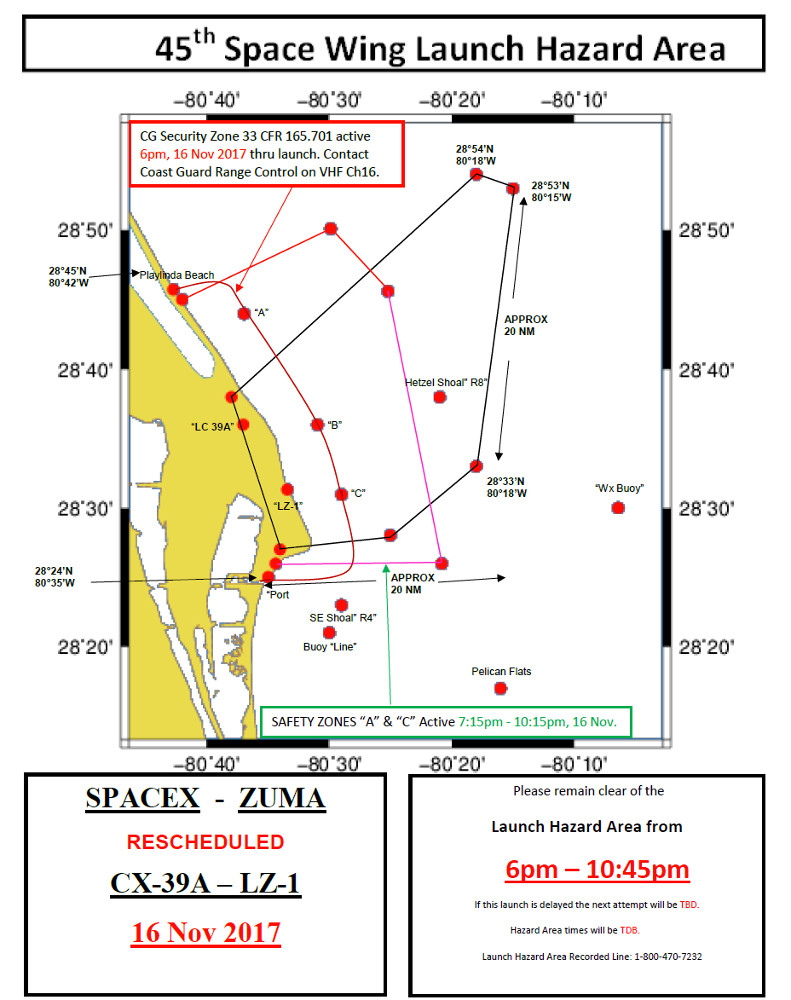

There are some potential clues as to the nature of the craft in a series of official U.S. Air Force notices and alerts that the service published to warn the public of areas of potential danger. This is to help civilian aircraft and boaters avoid potential hazards during the launch.
Using these documents and other available information, Spaceflight101.com offered some educated guesses as to the nature of the Zuma craft itself. The site noted that the closure areas were very similar to that of NROL-76, suggesting that the mission would involve an extremely high lofted trajectory to get the craft into orbit. This would involve the rocket flying on a more vertical flight path that would keep the first, reusable stage very close laterally to the landing area. Combined with reports that the rocket will not burn all of its fuel during the launch, this could indicate a lighter weight payload that requires less time and energy to get up to the appropriate speed and altitude.
This doesn’t offer any particular indication one way or another as to the craft’s mission or actual capabilities, though, and there’s little concrete information to go on from other available sources. At first glance, there isn’t much to glean from the official mission patch, which often contain cryptic symbols relevant to the particular launch.
The only spacecraft the artwork depicts is the Falcon 9, along with its company logo, a blue star marking the launch site in Florida, and an American flag waving in the background. A four leaf clover that appears at the bottom of the heraldic shield, a device that appears on many other SpaceX mission patches, is one of the only other symbolic elements and it’s unclear as to its significance.
But there is one potentially more interesting feature. A constellation of six twinkling stars is at the top left, making up a significant portion of the patch. Top secret “black projects” developed at or operating in relation to the Area 51 test site at Groom Lake have long used a similar obscure motif, with the markings acting as an abstruse statement, standing for “5+1” or “51.”
Although we can’t say with any certainty that this payload is connected to the secretive base and the myriad projects that are underway there, there have been reports that the legendary facility in Nevada has supported the development of experimental motherships used to haul payloads or small spacecraft into orbit or on suborbital flight profiles. In 2014, construction began there on a massive new hangar that could possibly house such a vehicle. The U.S. Air Force and the Defense Advanced Research Projects Agency (DARPA) has since publicly announced that they are actively working on developing this capability, but more on that in a moment.
Northrop Grumman is known to be especially active in the classified domain and has its own connections to Area 51, having worked there on the Tacit Blue stealth demonstrator – there is even see a six star symbol painted in its cockpit – during the 1970s and 1980s and certainly many other flying programs since. The top secret facility is likely where the company developed its top secret high-altitude surveillance drone, known as the RQ-180, and may have or continue to host development of the B-21 Raider stealth bomber or its technology demonstrator predecessors.
Again, however, numerous other SpaceX mission patches, including those for launches supporting public civilian projects, use similar star arrangements. The entire patch design actually shares a significant number of features – the Falcon 9 and company logo, a highlighting of the launch area in Florida, an American flag motif, the clover, and the six stars on a black background – with the one for the earlier NROL-76 mission, which is itself interesting given that NRO’s insistence that it has no relationship to the Zuma spacecraft. At the time of writing, SpaceX had not responded to questions about the symbolism.
Zuma could still be linked to other agencies within the U.S. Intelligence Community. In its analysis, Spaceflight101.com noted that, at least contracting wise, having Northrop Grumman make its own arrangements with SpaceX mirrored the procedure that the Central Intelligence Agency and National Security Agency used to quietly launch the “PAN” and “CLIO” satellites in 2009 and 2014, respectively. Documents Edward Snowden released to The Intercept provided the first publicly available details of these craft and that they were signals intelligence platforms.
In filing its forms with the FCC, SpaceX described the “nature of service” as “experimental.” As such, the payload may just be a technology demonstrator of some kind rather than a production sensor or other equipment package.
The craft could be an experimental payload intended for the U.S. military’s aforementioned future two stage to orbit space launch system. In May 2017, DARPA hired Boeing, which was also responsible for the X-37B, to build this reusable space plane, which it has already designated the XS-1. The main goal of the overall project is to develop a way to rapidly deliver payloads into low earth orbit.
In addition to Boeing, Lockheed Martin is also on contract for a variety of space-related developments for the U.S. government. And as we mentioned earlier there could easily be a parallel sub-orbital payload delivery system in the works on the top secret side.
It’s also worth noting that the Zuma mission revelation came shortly before Northrop Grumman abruptly pulled out of the U.S. Navy’s MQ-25 tanker drone program. The company also suddenly dropped out of the USAF’s new training competition last winter, even after its prototype had already flown. It is possible that the firm is self-funding a part of this spacecraft project as a proof of concept for this mysterious U.S. government customer.
Northrop Grumman invested privately in a variety of advanced technologies ahead of submitting its proposal for the B-21 bomber. Regardless, in making the announcement that the firm would not longer compete for the MQ-25 contract, CEO Wesley Bush told reporters that its drone projects were still “broadly doing well” without offering any specific details about those programs.

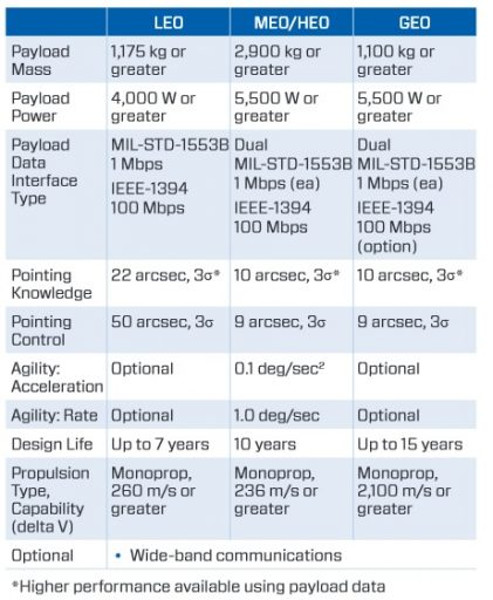

With regards to Zuma specifically, Spaceflight101.com noted that Northrop Grumman’s Eagle-3 is the only space craft the company publicly offers that needs a rocket such as a Falcon 9 to get into low earth orbit and is therefore could be a likely basis for Zuma. This scalable satellite bus can accommodate payloads of 2,500 pounds or more and has an on board power supply that can keep it running for a typical lifespan of seven years.
This could be longer or shorter depending on the exact equipment the customer installs inside it, but it would still offer a modular and highly adaptive test bed with a long service life that whoever the actual customer is might be able to service in orbit in the future. The satellite could conceivably carry antenna arrays to pick up electronic transmissions, electro-optical or infrared sensors, communications nodes, radar systems and the data links necessary to beam any information back down to control stations on the surface.
The U.S. military has also publicly announced its own tests of small repair craft that can rapidly service other satellites in orbit, which would be yet another payload option. Of course, there is also the suggestion that these kind of maneuverable miniature spacecraft could also attack hostile objects in space.
There have been reports in the past that Russia is experimenting with this concept. Zuma could be an experimental “killer satellite” that an intelligence agency is exploring as a way to tap into or disrupt an opponent’s space-based assets. Such a spacecraft might even have the ability to launch a localized cyber attack on the target object.
These are just a few of the more exotic notional purposes for the Zuma launch and we have to stress that its mission could be something far more mundane. We just don’t know.
Once Zuma enters orbit and begins to move around, or not, its basic characteristics and mission may become clearer. You can be sure we’ll be keeping an eye on its progress.
